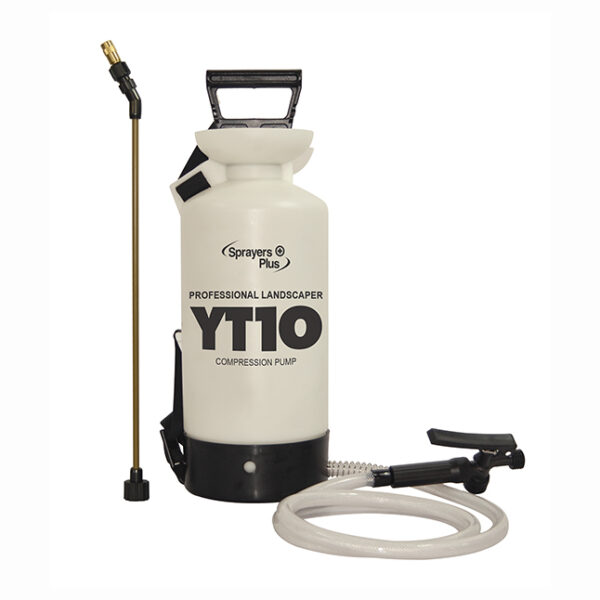

YT10 Hand-Held Compression Sprayer
The YT series is commonly seen on the trailer of professional landscape company as one of the essential equipment. Regardless of its capacity at 1, 2 or 3 Gallons, the YT Sprayer will deliver a great job with no doubt. It is equipped with the exclusive internal compression pump module which is highly durable when used in default approved application. Same as the other models in the Sprayers Plus™ family, the YT Sprayers is molded with high-density polyethylene including UV inhibitor protection. It can espouse under the sun with high heat for a long enough period of time without any damage nor crack. The 5.24 Quickfill mouth opening reduces the risk of spillage while filling. With maximum 100 PSI and recommended working pressure between 15- 60 PSI, it is an ideal sprayer to be carried around in a daily basis.
Applications
Primary
- Herbicides
- Fertilizing
- Pesticides
- Insecticide
Secondary
- General Gardening
KEY FEATURES
-
1 Gallon
- Compression
-
Regular Pressure
-
No Jet Agitation
-
No Battery Powered
- FEATURES
- SPECIFICATIONS
- PARTS
- USER MANUALS
FEATURES
Nozzles Included
We include a variety of high-grade nozzles with our sprayers, allowing you the flexibility to chose how YOU work. Each of our nozzles are customization for peak performance. All nozzles are NOT made equal – Spray your way, efficiently and effectively. Stream, mist, fan – Your choice!
Viton & Seals
At Sprayers Plus, we use only the highest quality genuine and industry-trusted Viton® seals.  Viton® seals are both stronger, more durable, and last longer than conventional rubber seals, meaning you can spray longer and leave the worry behind!
Spray Gun with Filter
Spray all day in comfort with our unique spray gun handle design. Our spray guns feature a filter equipped with a fine screen mesh, providing excellent performance for lacquers and fine finishes. The fine mesh also helps to provide a cleaner, more accurate spray out of the gun tip, while simultaneously preventing unwanted debris from entering the gun that might cause blockage and clogging.
Quality Housing
Quality that you can feel. We use up to 50% thicker cylinders than other leading products in the market. We promise a solid foundation free from distortion, alongside a high duration, long lifetime housing. All our sprayers have a high tolerance for accidental drops, and our special UV Inhibitor on the tank will allow for usage under the sun for 3- 5 years without any cracking. Our unique Sprayers Plus tank design also simplifies the act of putting on and taking off the sprayer!
QuickFill
QuickFill lid and mouth opening. Our QuickFill system reduces spillage and saves you time, allowing you to spend more time working. Our precision inner thread engineering enhances the screwing experience to better serve you! Always a perfect fit, 100% sealed and secure. Our lid is designed to be able to lift a full sprayer tank for a lifetime.
Wand Holder
Quick-snap wand holder for easy retrieval and storage of your Sprayers-Plus wand.
SPECIFICATIONS
System
| Pump Type | Compression Pump |
|---|---|
| Voltage | No |
| Battery Type | No |
| Duration | No |
| Battery Cycle | No |
| Charging Time | No |
| Battery Weight | No |
| Agitation | No |
| Working Pressure | 15-60PSI |
| Max PSI | 100 PSI |
Capacity
| Gallons | 1 |
|---|---|
| Litres | 3.8 |
Hose
| Hose Length | 51" |
|---|---|
| Hose Material | Reinforced PVC (Clear) |
| Hose Base Spring | Yes |
Wand
| Wand Length | 20" |
|---|---|
| Wand Material | Brass (Powder Coated) |
| Seals & O-Rings | Viton ™ |
Nozzle
| Plastic Adjustable Nozzle | No |
|---|---|
| Brass Adustable Nozzle | Yes |
| 90 Deg. Plastic Fan Nozzle | Yes |
| 110 Deg. Plastic Fan Nozzle | Yes |
| 120 Deg. Plastic Fan Nozzle | No |
Spray Gun
| Lock pin | Yes |
|---|---|
| Brass Spindle | Yes |
| Comfort Grip | Yes |
| Comfort Grip Internal Filter | Yes |
Comfort and Convenience
| Strap | Comfort padding/ Adjustable Strap |
|---|---|
| Frame Material | No |
| Handle & Lever Material | No |
| Mouth Opening | 5.24" QuickFill |
| Fold Back Handle | No |
| Polyethylene with UV inhibitor | Yes |
| High Pressure | No |
Warranty
| Warranty | 1 Year |
|---|
Package Dimensions
| Width | 7.87 |
|---|---|
| Depth | 7.87 |
| Height | 22.83 |
PARTS
BLACK BASE FOR 1 & 2 GALLON COMPRESSION SPRAYER
$11.99
Buy Online or In-Store
PUMP HANDLE B – BLACK
$35.99
Buy Online or In-Store
PUMP PLUNGER
$5.99
Buy Online or In-Store
PISTON SEAT
$3.99
Buy Online or In-Store
COMPLETE PUMP MODULE
$45.99
Buy Online or In-Store
PUMP PLUNGER & SEAT
$7.99
Buy Online or In-Store
PUMP TUBE WITH O-RING AND ANTENNA
$27.99
Buy Online or In-Store
SCREW SET & SPRING FOR TOP OF PUMP
$11.99
Buy Online or In-Store
SPRAY GUN A PARTS SET
$30.99
Buy Online or In-Store
PLUG SET
$4.99
Buy Online or In-Store
BRASS SPRAY WAND – 20″
$24.99
Buy Online or In-Store
PVC HOSE SET W/ CLAMPS
$23.99
Buy Online or In-Store
PROTECTIVE HOSE SPRING
$9.99
Buy Online or In-Store
SPRAY GUN FILTER
$2.99
Buy Online or In-Store
PLASTIC SPRAY TIP SET
$5.99
Buy Online or In-Store
ANTENNA & O-RING
$3.99
Buy Online or In-Store
LARGE O-RING FOR PUMP TUBE (BLACK)
$3.99
Buy Online or In-Store
NOZZLE HOLDER
$3.99
Buy Online or In-Store
COMPLETE ADJUSTABLE BRASS NOZZLE
$18.99
Buy Online or In-Store
WASHERS SET FOR SPRAY GUN
$3.99
Buy Online or In-Store
O-RING FOR ADJUSTABLE NOZZLE
$0.99
Buy Online or In-Store
SILICONE GREASE
$7.99
Buy Online or In-Store
PADDED SHOULDER STRAP
$16.99
Buy Online or In-Store
BRASS SPINDLE SET
$9.99
Buy Online or In-Store
SPINDLE SEAL
$4.99
Buy Online or In-Store
SPRAY GUN A3
$36.99
Buy Online or In-Store
